7x40W LED zoom moving head

SPL-LED-740

1. 7x40W RGBW 4in1 LED with high light output
2. Electronic zoom at 3-40°
3. RDM control
4. Fast movement through high torque motors

Power

Input voltage：AC100-240V 50/60Hz

Power consumption：350W

Fuse：5A/250V

Fixture

IP rating：IP20

Cooling method: fan cool

Max ambient temp：45℃

Case color：black

LED

LED SPEC: 7pcs 40W RGBW 4in1 Luminus LED

Average lifespan: 50,000 hours

Control

DMX channel：10/17CH

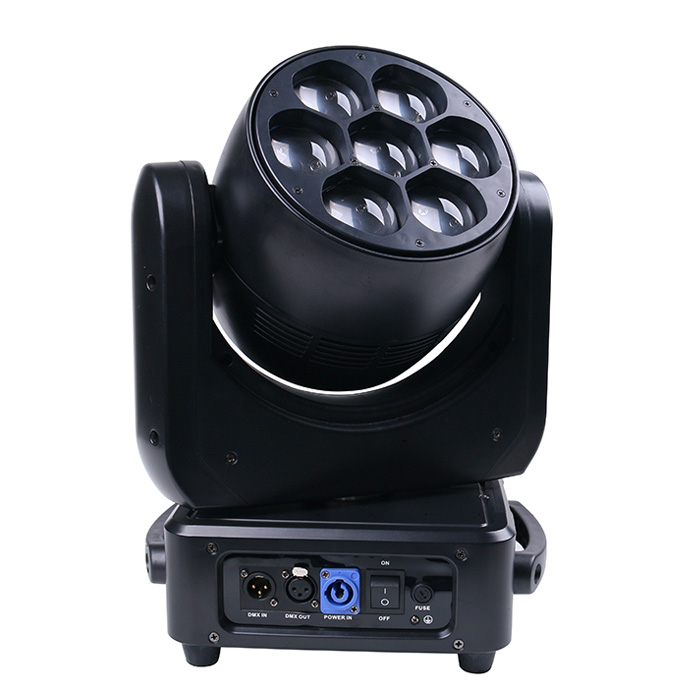

DMX connector：3Pin XLR input/output

Power connector: PowerCon input/output

Control mode：DMX/master-slave/auto/sound/RMD

Pan：540º, 2.5S

TILT：240º, 1.0S

Electronic zoom at 3-40°

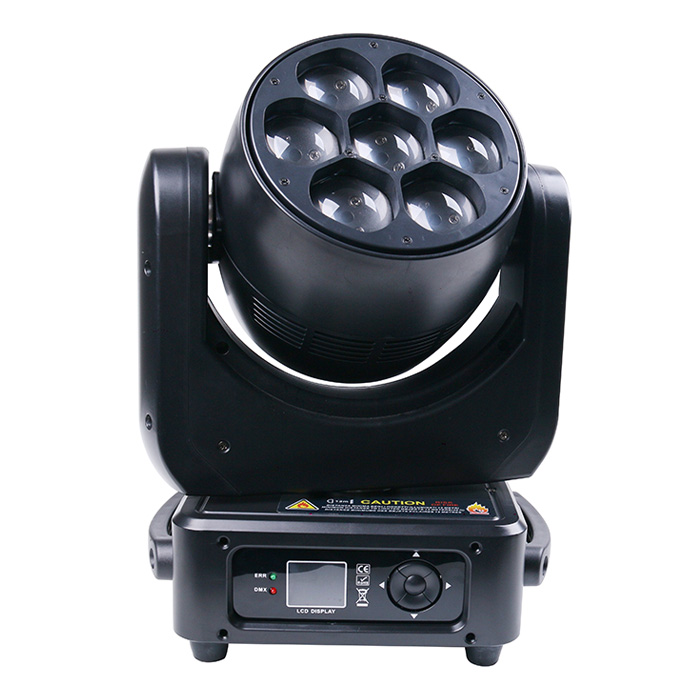

LCD color display

Color effect

Color: RGBW color mixing

Beam angle: 3-40°

Dimming：0-100% 16bit

Strobe：0-25/S

Lux @ 3m with full on: 32000 at 3°

Dimension

Product dimension: 310*210*400 mm

N.W: 9.3KG

Outer carton size: 390*300*485mm

G.W.: 12.5KG(1pc/carton)

Flight case size: 880*500*640mm

G.W.:75KG(4pcs/flight case)
